How to Extract Weighbridge Ticket Data to Excel
for Steel, Mining, Grain & Chemical Procurement

What a Weighbridge Ticket Actually Records — Two Separate Weigh Events, One Transaction

Before discussing extraction, it's worth understanding what makes a weighbridge ticket structurally different from the document types most extraction tools were designed for. A weighbridge ticket isn't a table of line items. It records two independent weighing events that happen minutes apart on the same vehicle, on the same scale — and the relationship between them determines the final price.

First weigh (Tare): The empty truck enters the weighbridge at 08:14. The certified scale records the unladen weight — 15,720 kg. The weighbridge operator notes the timestamp, vehicle plate, and material code. The truck leaves the scale, drives to the loading bay, and receives its cargo — iron ore, limestone, grain, or bulk chemicals.

Second weigh (Gross): The loaded truck returns to the same weighbridge at 08:26. The scale records 45,660 kg. Both readings — tare and gross — appear on a single printed ticket, alongside timestamps, vehicle ID, operator initials, and material descriptions.

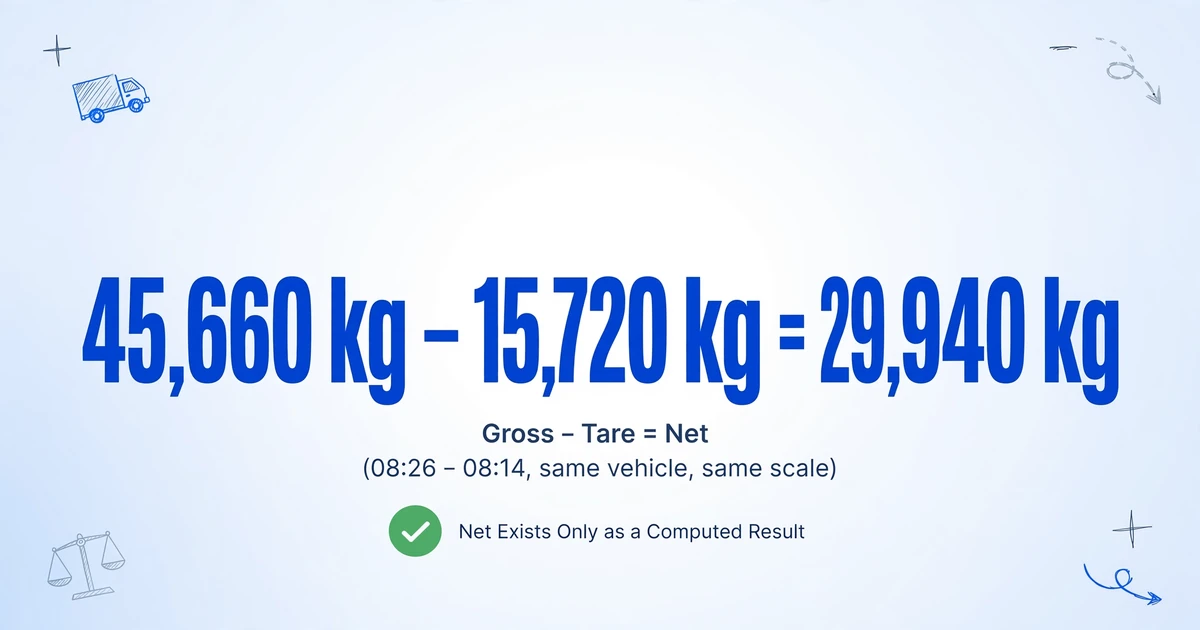

Net weight exists only as a computed result: Net = Gross − Tare. The ticket may or may not print this value. Even when it does, it's a number generated by the weighbridge software — and if the operator misread the tare or if the printer hiccuped, the printed "net" is wrong and the discrepancy won't be caught until someone re-does the subtraction. A Loop ERP analysis found that manual data entry error rates in high-volume weighbridge operations consistently range between 1–4% — and at 200 tons per day, a 1% weighing discrepancy carries an annual revenue impact exceeding $150,000.

This is the structural challenge that makes weighbridge ticket extraction fundamentally different from invoice or receipt processing. You're not extracting data from a flat table. You're reconstructing a two-event causal chain — and verifying the math — before the numbers enter your procurement settlement spreadsheet.

Why No Two Weighbridge Tickets Look the Same

The weighbridge software market is fragmented. A single procurement operation receiving material from a dozen supplier sites can encounter a dozen different ticket formats — each with its own layout. A single procurement operation receiving material from a dozen supplier sites can encounter tickets printed by WinWeigh (Weightron), Avery Weigh-Tronix, SmartWeigh, B-TEK ScaleSoft, Mettler Toledo JAGXTREME terminals, Intercomp Weigh, and custom in-house software — each with its own ticket layout.

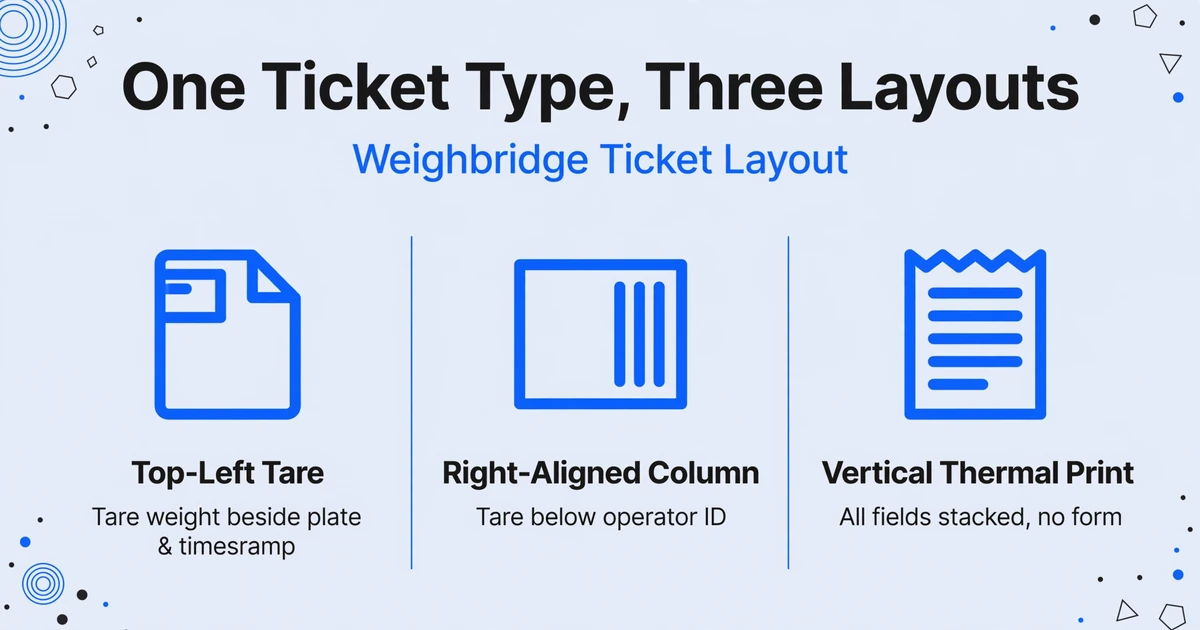

SmartWeigh alone ships over 30 ticket templates. One template places the tare weight in the top-left corner alongside the vehicle plate and timestamp. Another prints it in a right-aligned column below the operator ID. A third stacks all fields vertically on a thermal printer receipt that barely resembles a form. These aren't obscure variations — they're the daily reality of any procurement operation that sources from multiple weigh stations.

The format diversity runs deeper than layout. Some tickets use a two-box structure, with "First Weigh" and "Second Weigh" clearly labeled as separate blocks. Others print a single continuous table where you have to infer which line is tare and which is gross from the weight values themselves. Carbon-copy duplicates — still common at smaller quarries and rural grain elevators — layer faint impressions on low-contrast paper that traditional OCR engines can barely read.

Template-based extraction requires building a separate template for each ticket layout. Twelve supplier sites, twelve templates. A weigh station upgrading its software means an existing template that silently breaks. Twelve supplier sites, twelve templates. A new supplier means a new template build session. A weigh station upgrading its software from WinWeigh III to WinWeigh IV means an existing template that silently breaks. The template library itself becomes the bottleneck you were trying to eliminate.

How Custom Column Extraction Reads Every Ticket Layout

Here's a different approach: instead of telling the tool where each field sits on the page, you tell it what each field means. This is Custom Column Extraction — you type the column names representing the data you want (e.g., "Ticket Number," "Vehicle License Plate," "Tare Weight," "Gross Weight," "Net Weight," "Material Code," "Supplier Name"), and the AI locates each value by understanding its role in the weighbridge workflow, not its pixel coordinates on the page.

A column named "Tare Weight" tells the AI to find the empty-vehicle weight reading — the lower number associated with the first weigh event. "Gross Weight" tells it to find the loaded-vehicle reading associated with the second event. The AI doesn't care whether the Avery Weigh-Tronix ticket puts gross weight in column 40 or column 105. It reads the document the way a weighbridge clerk would: by understanding what each number represents in the loading workflow.

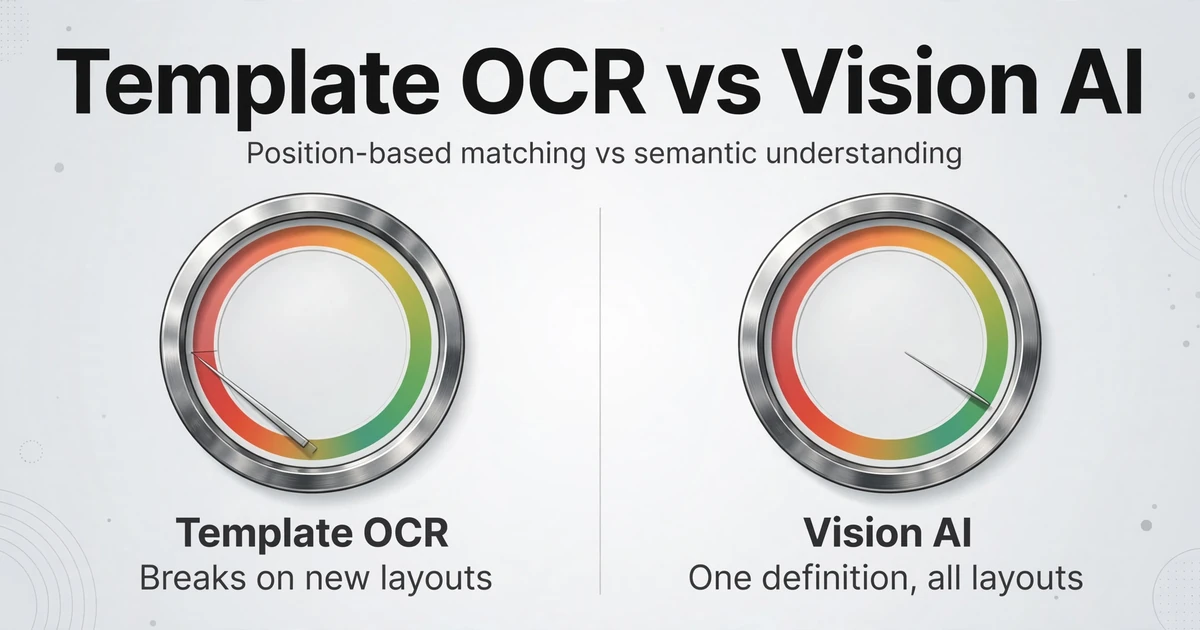

This is the structural difference between template OCR and vision AI. Template OCR matches characters by position — it works when every ticket has the same layout and breaks when they don't. Vision AI reads documents by understanding context and semantics — the same column definition works across tickets from different weighbridge stations, different software vendors, and different print formats. You define your columns once. Every ticket — regardless of which weigh station generated it — produces data aligned to the same output structure.

Batch Processing Workflow: 50 Tickets, One Spreadsheet, Verified Net Weights

The workflow for converting a stack of weighbridge tickets into a single settlement-ready spreadsheet has four steps — each designed around the principle that the tool adapts to your documents, not the other way around.

Processing speed scales with document count, not format complexity. A single-page weighbridge ticket processes in 5–10 seconds. A batch of 50 tickets completes in minutes. The AI doesn't slow down because the 23rd ticket comes from a weigh station running a different software package — semantic extraction treats format diversity as a non-issue, not a configuration hurdle.

Classifying Materials During Extraction: From Inconsistent Codes to Clean Categories

Weighbridge tickets often carry material codes that are abbreviated, inconsistent, or specific to the weigh station's internal system — "IRN 62," "CRSH AGG 20mm," "FLY ASH DRY," "HRS 10mm." When tickets come from multiple supplier sites, the same material may appear under different codes. A steel mill's procurement team needs to know total iron ore tonnage across all suppliers — not reconcile three different material code schemes.

An Inferred Column solves this during extraction. Add a column like "Material Category (options: Iron Ore | Limestone | Coal | Aggregate | Chemicals | Other)" and the AI reads the material description or code on each ticket, matches it to the closest category, and fills the column. Extraction and classification happen in a single pass — no post-processing VLOOKUP, no manual review of every code. The original material description stays in its own column as the source-of-truth text; the inferred category provides the standardized grouping your settlement spreadsheet needs.

For procurement operations dealing with commodity-grade materials where classification drives pricing — such as distinguishing 62% Fe iron ore from 58% Fe — keep the grade designation in a direct extraction column alongside the inferred category. The inferred column handles the broad bucket; the direct extraction column preserves the contractual specification.

Skip Email Attachment Hunting: Let Each Weigh Station Upload Directly

Even after you solve the extraction problem, a logistical one remains: getting the ticket files into the system. The typical procurement workflow goes: supplier weigh station prints tickets → someone scans or photos them → emails PDFs to procurement → procurement downloads attachments → saves to folder → uploads to extraction tool. The extraction is automated but the collection isn't.

Collection Link closes this gap. You generate a unique URL from your account and share it with each supplier weigh station. The weighbridge operator opens the link, enters a short verification code, and uploads the day's ticket batch directly to your processing queue. No email, no download, no folder. The sender doesn't need an account or login.

For procurement teams receiving tickets from 10–30 supplier sites, this eliminates the least efficient part of the process: the human-in-the-middle step of collecting scattered email attachments. Instead of "check 20 supplier emails → download 20 batches → organize → upload," the flow becomes "supplier uploads → tickets appear in your queue → batch process → export."

Handling Carbon-Copy and Handwritten Weighbridge Tickets

Not every weighbridge station generates clean thermal or laser-printed tickets. Rural quarries, small grain elevators, and older industrial sites often use carbon-copy paper tickets filled out by hand — the operator writes the vehicle plate, material code, and both weight readings, then tears off the duplicate for the driver.

These tickets present two challenges for extraction. First, carbon-copy duplicates are inherently low-contrast — the impression on the second or third layer is fainter than the original, with characters that may be broken or ghosted. Second, handwritten weight readings on these tickets have the same variability as any handwriting — operator penmanship, smudging, and carbon-paper bleed all affect legibility.

For carbon-copy tickets, scan the original top-copy whenever possible — the contrast is significantly better than the duplicate. For archives where only duplicates remain, the AI's handwriting recognition handles clear carbon impressions at reasonable accuracy, but expect lower confidence on faded or smudged fields. Run the Computed Column net weight check on a sample batch before processing the full archive — if most Weight Check values come back as zero, the extraction is reliable. If non-zero values are common, spot-check those rows manually.

The Weight Ticket as a Legal Document: What's at Stake

In bulk commodity procurement, the weighbridge ticket is more than a data record — it's a legal document. Under NIST Handbook 44, the governing standard for commercial weighing devices in the United States, legal-for-trade scales must meet specified accuracy tolerances and produce recorded representations that include the transaction weight. The National Type Evaluation Program (NTEP) certifies that scale equipment conforms to these requirements. A ticket printed by an NTEP-certified weighbridge on a NIST Handbook 44-compliant scale is the legally decisive weight record for the transaction.

Kentucky Revised Statutes 363.780 — representative of similar laws in most states — requires that bulk commodity deliveries sold by weight must be accompanied by a duplicate delivery ticket showing vendor name and address, purchaser name and address, net weight, and the gross and tare weights from which net was derived. Under 49 CFR §375.519, weight tickets must include the complete name and location of the scale, the date of each weighing, identification of weight entries as tare/gross/net, and the weighmaster's signature.

The legal weight of these documents has a practical implication for extraction: the data you extract is the data the weighbridge recorded. The AI does not verify scale calibration. It extracts what's printed or written on the ticket. The Computed Column Weight Check verifies internal consistency — is Gross minus Tare equal to Net? — but it cannot tell you if the scale itself was reading 50 kg high that morning. Scale calibration audit is the domain of the registered service agent maintaining the weighbridge, not the document extraction tool.

Frequently Asked Questions

Can this handle weighbridge tickets where tare and gross events are on separate pages?

Yes — upload both pages as part of the same batch. The AI processes each page independently but associates results by vehicle plate and ticket number. If your weighbridge operation issues separate tare and gross slips (common in some single-weigh-per-pass setups), upload them together and the AI pairs the two events by shared identifiers.

What if suppliers use different field names — e.g., "Tare" vs. "Empty Wt." vs. "Unladen"?

The AI maps semantically equivalent terms. If you specify "Tare Weight" as your column name, the AI will locate fields labeled "Tare," "Empty Wt.," "Unladen," or "Tare Mass" on the ticket and map them to your Tare Weight column. You don't need to list every synonym — the AI understands that these refer to the empty-vehicle weight reading.

Do I need to configure anything per supplier weigh station?

No. The column list you define once works across all weigh stations and all ticket formats. There's no template building, no per-supplier configuration, no training phase. This is the core advantage of semantic extraction over positional extraction for a fragmented format landscape.

What happens if a ticket is missing a field — for example, some weighbridge tickets don't show driver name?

The cell for that field is left blank in the output for that ticket. Your spreadsheet structure stays consistent across all rows; missing fields appear as empty cells. No errors, no template mismatch alerts, no workflow interruption.

Can I export the data in my ERP's import format?

Yes — configure your column names to match your ERP's import field names. Use your ERP's exact headers when defining columns, and the XLSX output will be structured for direct import. Date formats and number formatting can be specified in your extraction configuration to match your ERP's requirements, whether you're using SAP, Oracle NetSuite, Microsoft Dynamics, or a commodity-specific platform like Loop ERP.

Does this tool connect directly to my weighbridge hardware?

No. ImageToTable.ai is a document extraction tool — it processes weighbridge tickets after they've been printed, scanned, or photographed. It does not connect to weighbridge hardware, load cells, or real-time weighing systems. If you need real-time hardware integration, that's the domain of weighbridge management software (WinWeigh, B-TEK ScaleSoft, etc.). This tool solves the downstream data-entry problem for tickets that already exist — the batch of 50 slips sitting on your desk.

How accurate is extraction for the critical weight fields — Tare, Gross, and Net?

For clean digital printouts from weighbridge software (the majority of tickets from operational weigh stations), weight field extraction accuracy typically exceeds 95%. Main accuracy drops come from: heavily faded thermal-print receipts, third-copy carbon duplicates with broken characters, densely handwritten fields with irregular penmanship, and severely skewed photographs. The Computed Column Weight Check catches extraction inconsistencies — a non-zero result means one of the three weight values was misread or the original ticket is inconsistent, and that row gets flagged for review.

For a deeper look at how automated extraction compares to manual data entry across procurement document types, see our comparison of weighbridge ticket OCR vs manual entry error rates and cost. For bulk conversion of weighbridge tickets into structured spreadsheets, use the weighbridge ticket to Excel converter.
